Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

CAUTION:

Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occurs, replace with a new part.

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

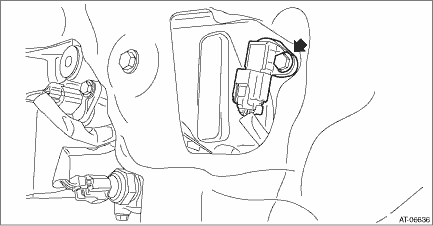

2. Remove the primary speed sensor.

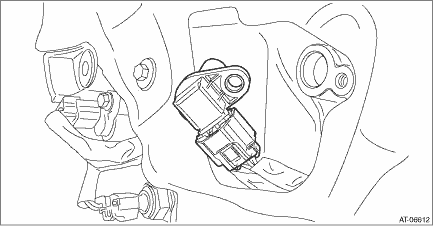

3. Disconnect the harness connector from primary speed sensor.

Primary speed sensor
...
