Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Secondary speed sensor / Removal

CAUTION:

• Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.

• When secondary speed sensor is removed, CVTF leaks. After installing the secondary speed sensor, adjust the CVTF level.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Lift up the vehicle.

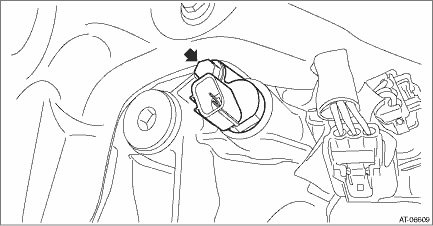

3. Disconnect the harness connector from the secondary speed sensor.

4. Remove the secondary speed sensor.
