Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Transfer driven gear / Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL

2. Remove the extension case. Extension Case > REMOVAL

3. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

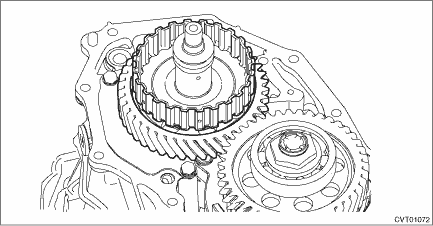

4. Remove the transfer driven gear assembly.

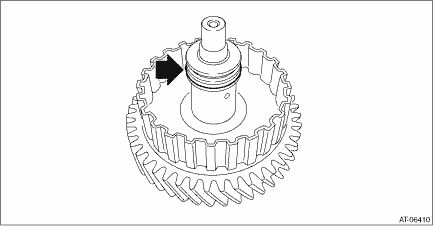

5. Remove the seal ring from the transfer driven gear assembly.

Adjustment

NOTE:When the transfer driven gear or bearing is replaced, select the transfer driven gear shim. Transfer Clutch > ADJUSTMENT ...
