Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Extension case / Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Remove the front wheel speed sensor. Front Wheel Speed Sensor > REMOVAL

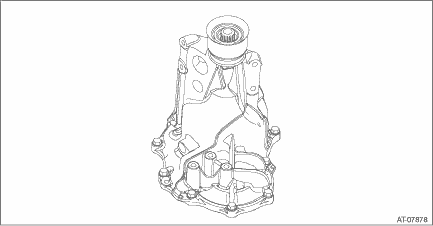

3. Remove the harness clip, and remove the extension case.

NOTE:

The total number of extension case mounting bolts is 10.

NOTE:When replacing the extension case, select the shims for rear drive shaft thrust needle bearing and transfer reduction driven gear. Rear Drive Shaft > ADJUSTMENT Transfer Reduction Driven Gear > ...
