Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Rear drive shaft / Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Remove the extension case. Extension Case > REMOVAL

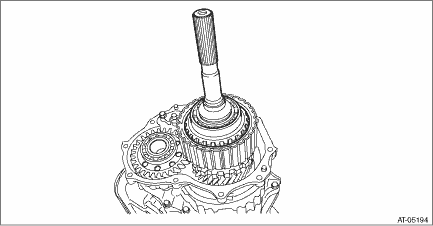

3. Remove the rear drive shaft.

Adjustment

NOTE:When replacing the rear drive shaft or bearing, select the thrust needle bearing.1. Using the ST, measure the distance “A” from ST end face to rear drive shaft thrust needle bearing c ...
