Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Secondary speed sensor / Removal

CAUTION:

Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.

1. Remove the transmission from the vehicle. Automatic Transmission Assembly > REMOVAL

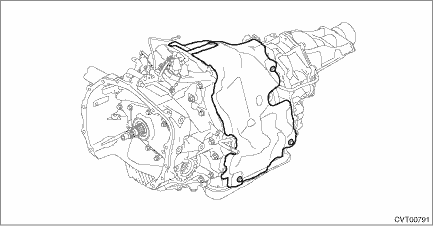

2. Remove the transmission cover on the transmission upper side.

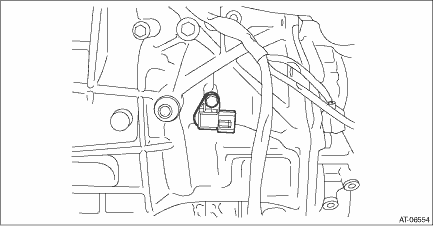

3. Remove the secondary speed sensor harness connector.

4. Remove the secondary speed sensor.
