1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

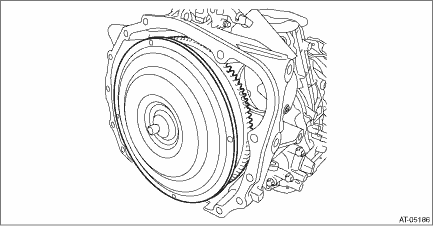

2. Pull out the torque converter assembly horizontally.

CAUTION:

Do not scratch the inside of engaging parts.

3. Remove the O-ring from the front reduction drive gear.

Inspection

• Check the protrusion of torque converter center (front boss) is not deformed or damaged.• Check the ring gear and exterior for break or damage. ...
