Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Transmission control device / Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Remove the oil pan and control valve body. Control Valve Body > REMOVAL

3. Remove the inhibitor switch. Inhibitor Switch > REMOVAL

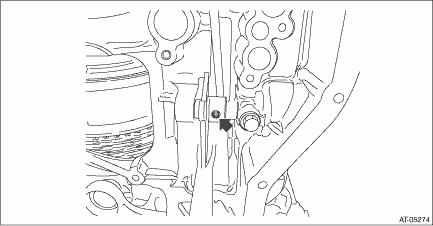

4. Remove the spring pin.

NOTE:

Prevent the spring pin from dropping in the transmission using paper towel etc.

5. Remove the bolt and remove the range select lever, manual plate and parking rod.

NOTE:

Do not damage the lip of oil seal press-fitted in the case.

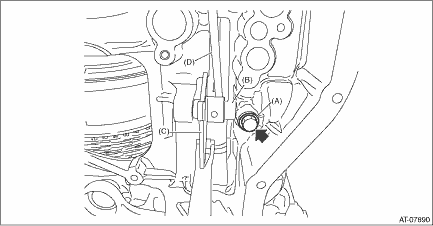

(A)	Bolt
(B)	Range select lever
(C)	Manual plate
(D)	Parking rod

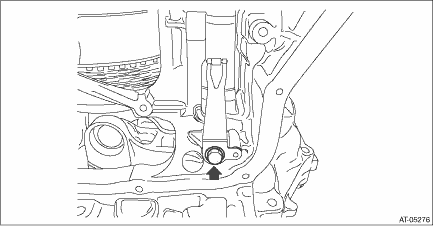

6. Remove the detent spring.

Inspection

Make sure that the manual lever and detent spring are not worn or otherwise damaged. ...
