Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / X mode switch / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the cover - shift lever. Console Box > REMOVAL

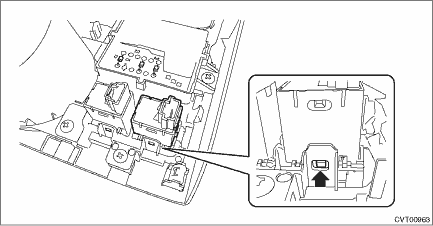

3. Remove the X mode switch from the cover - shift lever.
