Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Control systems / Select cable / Removal

1. Shift the select lever to “N” range.

2. Disconnect the ground terminal from battery sensor. NOTE

3. Lift up the vehicle.

4. Remove the center exhaust pipe. (2.5 L model) Center Exhaust Pipe > REMOVAL

5. Remove the front exhaust pipe and rear exhaust pipe. (3.6 L model) Front Exhaust Pipe > REMOVAL Rear Exhaust Pipe > REMOVAL

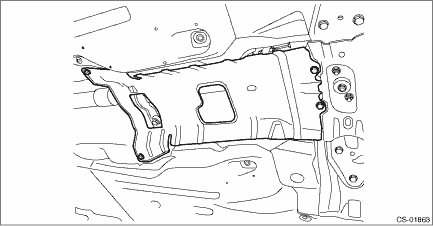

6. Remove the center exhaust cover.

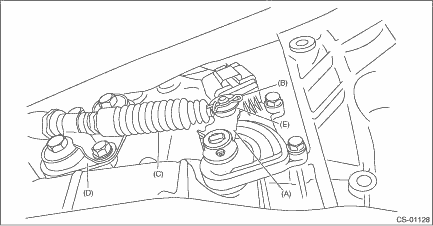

7. Remove the snap pin and washer from the shifter arm and remove the select cable from the shifter arm.

(A)	Shifter arm
(B)	Snap pin
(C)	Select cable
(D)	Plate ASSY
(E)	Washer

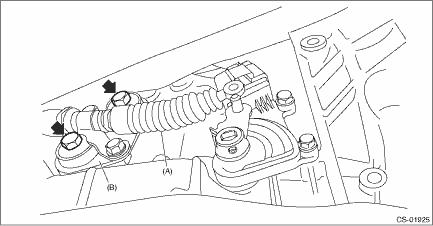

8. Remove the plate assembly from the transmission case.

(A)	Select cable
(B)	Plate ASSY

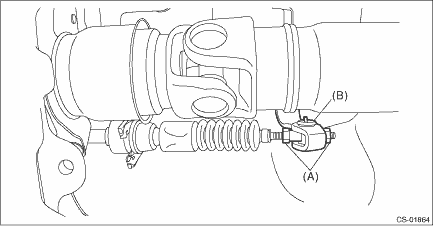

9. Disconnect the cable from arm assembly.

(A)	Nut
(B)	Arm ASSY

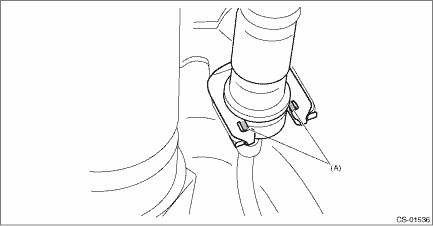

10. Raise the claw of clamp to remove the cable from bracket.

(A)

Claw

11. Remove the select cable from plate assembly.

Adjustment

1. Shift the select lever to “N” range.2. Lift up the vehicle.3. Remove the center exhaust pipe. (2.5 L model) Center Exhaust Pipe > REMOVAL4. Remove the front exhaust pipe and rear exhau ...
