Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Cooling(h4do) / Reservoir tank / Removal

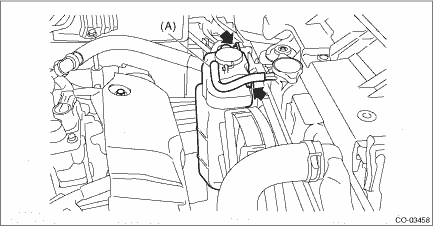

1. Disconnect the over flow hose (A) connected to the radiator filler neck from the reservoir tank.

2. Remove bolts which secure the reservoir tank, and remove the reservoir tank.

Inspection

1. Check that the reservoir tank does not have deformation, cracks or damage.2. Make sure the over flow hoses are not cracked, damaged or loose.3. Make sure the engine coolant level is between “ ...
