Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Cooling(h4do) / Reservoir tank / Inspection

1. Check that the reservoir tank does not have deformation, cracks or damage.

2. Make sure the over flow hoses are not cracked, damaged or loose.

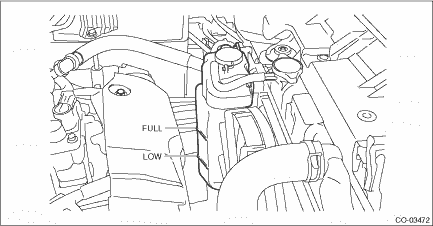

3. Make sure the engine coolant level is between “FULL” and “LOW”.
