Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

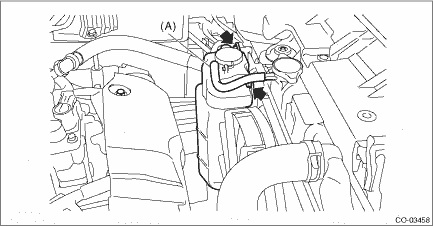

1. Install the bolts securing the reservoir tank to the radiator fan shroud. Tightening torque: 7.5 N·m (0.8 kgf-m, 5.5 ft-lb) 2. Insert the over flow hose (A) connected to the radiator filler neck into the reservoir tank.
|
Inspection
1. Check that the reservoir tank does not have deformation, cracks or damage.2. Make sure the over flow hoses are not cracked, damaged or loose.3. Make sure the engine coolant level is between “ ...
