1. Remove the collector cover.

(1) Carefully pull up the rear of collector cover at two positions (A).

(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

2. Disconnect the ground terminal from battery sensor. NOTE

3. Remove the chain cover. Chain Cover > REMOVAL

4. Remove the timing chain assembly. Timing Chain Assembly > REMOVAL

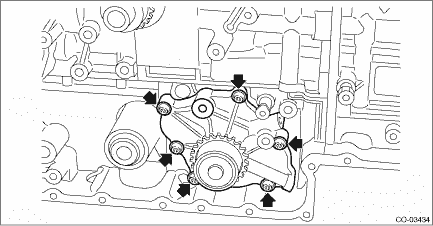

5. Remove the water pump from the oil pan upper.

Inspection

1. Check the water pump bearing for smooth rotation.2. Check the water pump sprocket for abnormalities.3. Make sure the impeller is not abnormally deformed or damaged. ...
