Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

1. Lift up the vehicle, and then remove the front wheels.

2. Remove the nut - axle.

CAUTION:

Do not loosen the nut - axle while the front axle is loaded. Doing so may damage the hub unit COMPL.

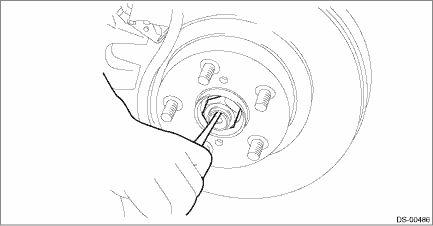

(1) Lift the crimped section of the nut - axle.

(2) Remove the nut - axle using a socket wrench while depressing the brake pedal.

3. Remove the disc brake assembly. Front Disc Brake Assembly > REMOVAL

4. Remove the disc rotor. Front Disc Rotor > REMOVAL

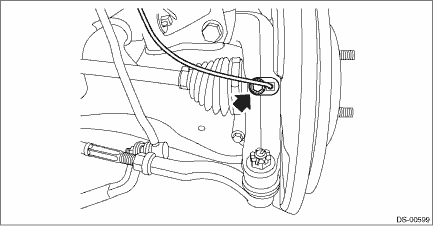

5. Remove the bolts, and remove the front ABS wheel speed sensor.

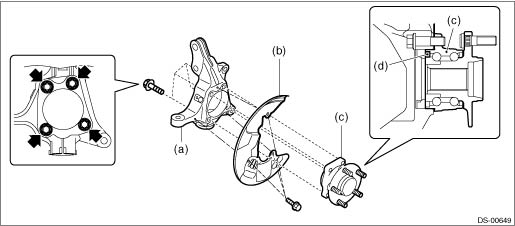

6. Remove the hub unit COMPL - front axle.

CAUTION:

Do not get closer the tool which charged magnetism to magnetic encoder.

Be careful not to damage the magnetic encoder.

(a)

Housing ASSY - front axle

(c)

Hub unit COMPL - front axle

(d)

Magnetic encoder

(b)

Back plate - front brake

NOTE:

If it is hard to remove, use the ST.

Preparation tool:

ST1: AXLE SHAFT PULLER (926470000)

ST2: AXLE SHAFT PULLER PLATE (28099PA110)

Front hub unit bearing
...

Assembly
1. Install the hub unit COMPL to the ST securely.Preparation tool:ST: HUB STAND (28099PA080)2. Using a press, press new bolts - hub until their seating surfaces contact the hub unit COMPL.NOTE:Use the ...
