1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the heater control assembly. Control Panel > REMOVAL

3. Remove the cover assembly - front and the console box assembly. Console Box > REMOVAL

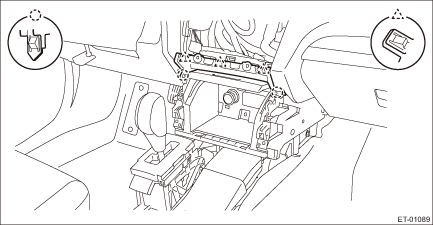

4. Release the claws, and then remove the panel center LWR.

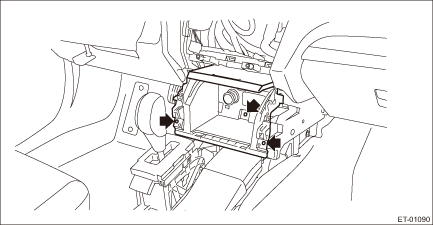

5. Remove the screws and remove the pocket assembly - CTR.

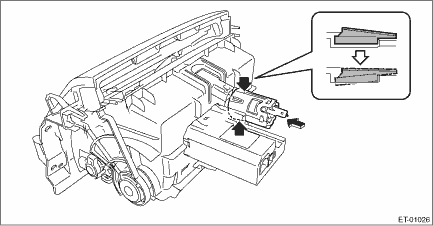

6. While releasing the claw, press it in from the rear to remove the socket assembly.

Installation

1. Install the socket assembly.NOTE:Align the groove of the pocket assembly - CTR with the claw of the socket assembly.2. Install the pocket assembly - CTR.3. Install the panel center LWR.4. Install t ...
