Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

1. SEDAN MODEL

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - trunk lid. Trunk Room Trim > REMOVAL

3. Remove the garnish - trunk. Trunk Lid Garnish > REMOVAL

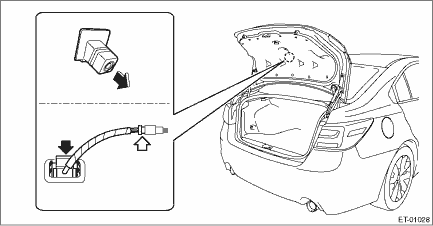

4. Remove the rearview camera assembly.

CAUTION:

Do not drop or apply any impact to the rearview camera because it is a precision equipment.

(1) Disconnect the connector.

(2) Release the claw and hook, and then remove the rearview camera assembly.

2. OUTBACK MODEL

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the trim panel - rear gate. Rear Gate Trim > REMOVAL

3. Remove the garnish assembly - rear gate. Rear Gate Garnish > REMOVAL

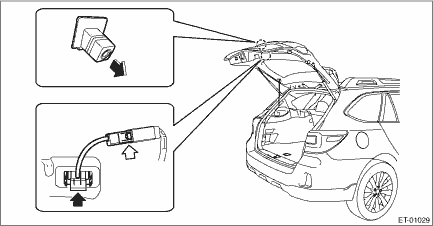

4. Remove the rearview camera assembly.

CAUTION:

Do not drop or apply any impact to the rearview camera because it is a precision equipment.

(1) Disconnect the connector.

(2) Release the claw and hook, and then remove the rearview camera assembly.

Inspection
1. Park the vehicle at a level place where there are enough area at the rear of the vehicle.2. Attach the tape as the target point for standard at the floor rearward of the vehicle as shown in the fig ...

Installation
1. SEDAN MODEL1. Install the rearview camera assembly.2. Install the garnish - trunk.Tightening torque:4.5 N·m (0.5 kgf-m, 3.3 ft-lb)3. Install the trim panel - trunk lid.4. Connect the ground ...
