Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior interior trim / Floor under protector / Removal

1. Lift up the vehicle.

NOTE:

A plate type lift cannot be used.

2. Remove the fuel tank protector.

• H4 model: Fuel Tank Protector > REMOVAL

• H6 model: Fuel Tank Protector > REMOVAL

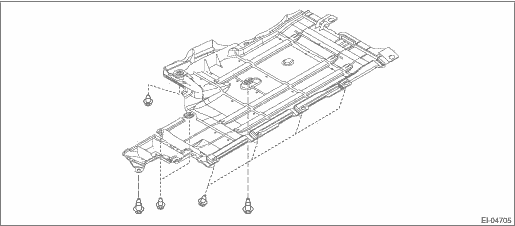

3. Remove the bolts and clips, and remove the floor under protector.
