Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior interior trim / Glove box / Removal

NOTE:

Refer to “Security and Locks” section for key cylinder replacement. Key Lock Cylinders > REMOVAL

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the pocket assembly.

(1) Remove the damper COMPL - pocket.

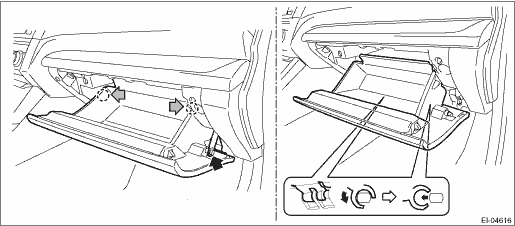

(2) Release the stoppers and remove the pocket assembly by pulling it toward you.

3. Remove the cover side sill - front and the front cover - side sill. Lower Inner Trim > REMOVAL

4. Remove the back panel - pocket.

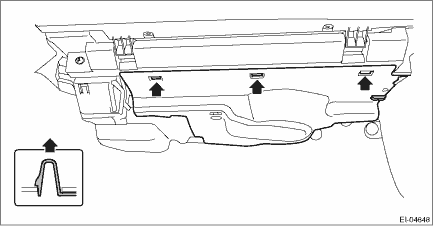

(1) Release the hook, and remove the under cover assembly - passenger.

(2) Remove the clips, and remove the cover - instrument panel side RH.

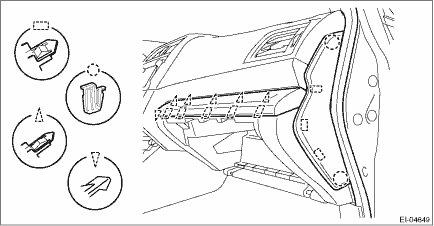

(3) Release the clips, and remove the ornament - panel assembly passenger.

(4) Disconnect the glove box light LED connector.

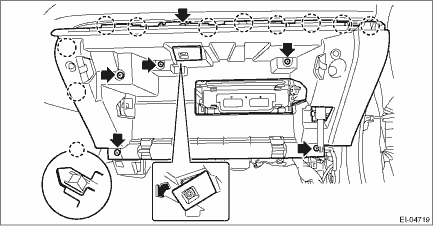

(5) Remove the screws, claws and harness clamp, then remove the back panel - pocket.

1. Install the back panel - pocket.2. Connect the glove box light LED connector.3. Install the ornament - panel assembly passenger.4. Install the under cover assembly - passenger.5. Install the cover ...
