1. Disconnect the ground terminal from battery sensor. NOTE

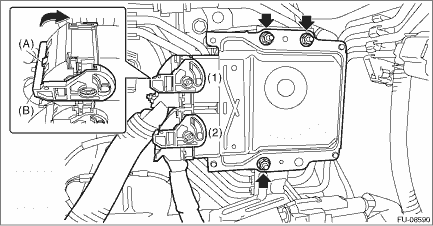

2. While pressing the section (A) shown in the figure, move the lock lever (B) in the direction of the arrow to disconnect the connectors from the ECM in numerical order as shown in the figure.

3. Remove the ECM from the ECM bracket.

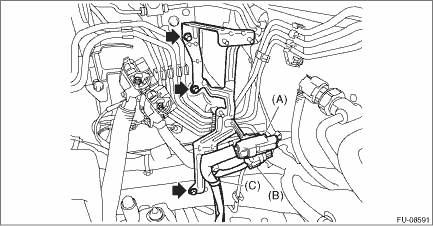

4. Remove the connector (A) and connector (B) from the ECM bracket, and remove the clip (C) securing the harness.

5. Remove the ECM bracket from the vehicle.

Inspection

Check that the ECM has no deformation, cracks or other damages. ...
