Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h4do) / Engine coolant temperature sensor / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Drain engine coolant. Engine Coolant > REPLACEMENT

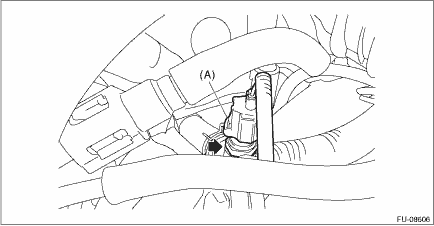

3. Disconnect the connector (A) from the engine coolant temperature sensor, and remove the engine coolant temperature sensor.
