Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h4do) / Fuel filler pipe / Removal

WARNING:

Place “NO OPEN FLAMES” signs near the working area.

CAUTION:

Be careful not to spill fuel.

1. Release the fuel pressure. Fuel > PROCEDURE

2. Drain fuel. Fuel > PROCEDURE

3. Open the fuel filler lid and remove the fuel filler cap.

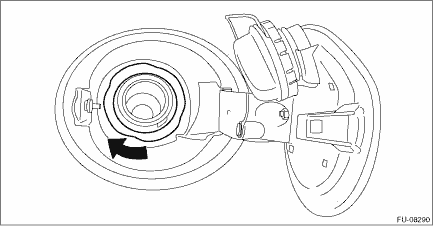

4. Turn the fuel filler pipe protector in the direction of the arrow to unlock and remove it.

5. Remove the rear sub frame assembly. Rear Sub Frame > REMOVAL

6. Remove the rear mud guard RH. Mud Guard > REMOVAL

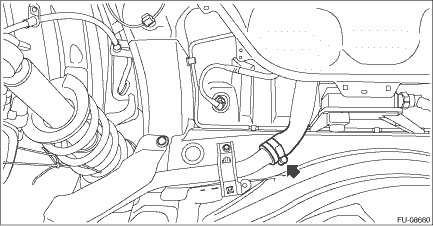

7. Disconnect the fuel filler hoses from the fuel filler pipe.

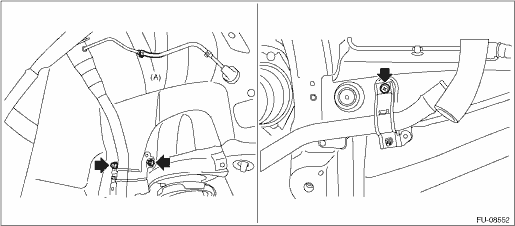

8. Disconnect the evaporation hose (A) from fuel filler pipe and remove the bolts and nuts securing the fuel filler pipe to the vehicle body.

9. Remove the fuel filler pipe from the underside of the vehicle.

Assembly

Install the fuel filler pipe bracket to the fuel filler pipe by aligning the alignment marks (A).Tightening torque:7.35 N·m (0.7 kgf-m, 5.4 ft-lb)• With protector• Without protector ...
