Subaru Legacy BN/BS (2015-2019) Service Manual: Removal
1. RH SIDE 1. Remove the collector cover. (1) Carefully pull up the rear of collector cover at two positions (A). (2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

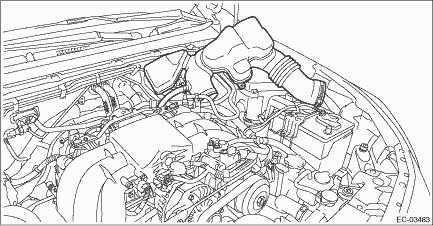

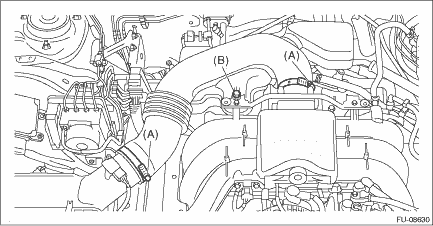

2. Release the fuel pressure. Fuel > PROCEDURE 3. Disconnect the ground terminal from battery sensor. NOTE 4. Open the fuel filler lid and remove the fuel filler cap. NOTE: This operation is required to release the inner pressure of the fuel tank. 5. Loosen the clamp (A) securing the air intake boot. 6. Remove the bolt (B) securing the air intake boot to the collector cover bracket.
7. Remove the air intake boot from the throttle body and the air cleaner case (rear), and move it to the left side wheel apron.

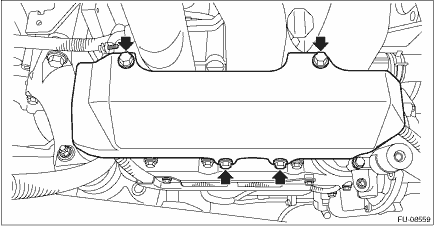

8. Remove the fuel pipe protector RH.

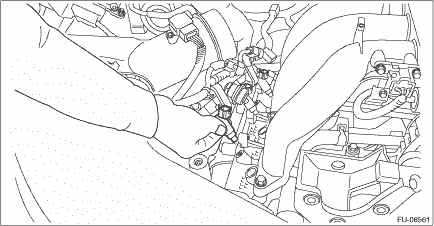

9. Disconnect the connector (A) from the fuel injector, and remove the bolts securing the fuel injector pipe to the cylinder head.
10. Remove the fuel injector while lifting up the fuel injector pipe. CAUTION: • Be careful not to spill fuel. • Catch the fuel from the pipes using a container or cloth.
2. LH SIDE 1. Remove the collector cover. (1) Carefully pull up the rear of collector cover at two positions (A). (2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

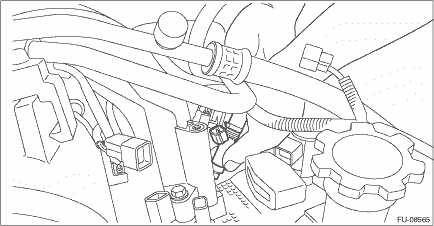

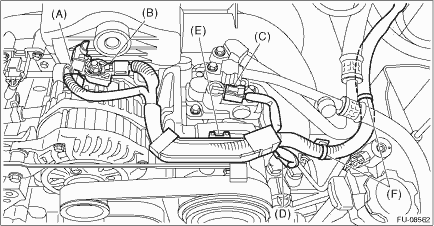

2. Release the fuel pressure. Fuel > PROCEDURE 3. Disconnect the ground terminal from battery sensor. NOTE 4. Open the fuel filler lid and remove the fuel filler cap. NOTE: This operation is required to release the inner pressure of the fuel tank. 5. Disconnect the connector (A) and terminal (B) from the generator. 6. Disconnect connectors (C) and (D) from A/C compressor, and remove the generator cord from clip (E). 7. Remove the clip (F) securing the generator cord to the fuel pipe protector LH, and move the generator cord to the left side wheel apron.

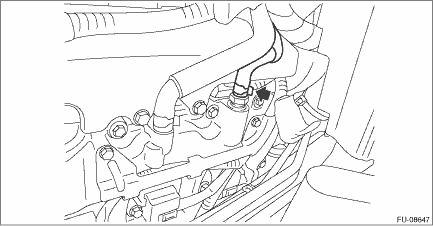

8. Disconnect the PCV hose.

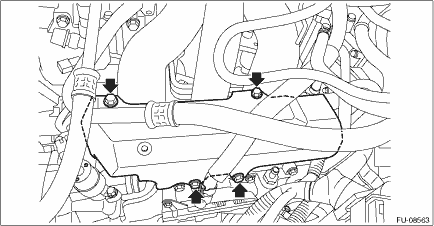

9. Remove the fuel pipe protector LH.

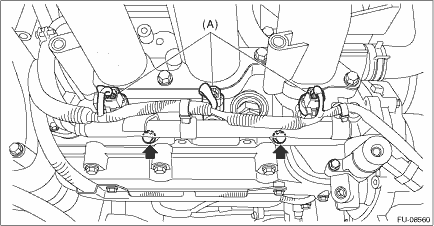

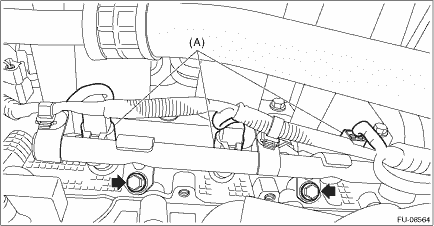

10. Disconnect the connector (A) from the fuel injector, and remove the bolts securing the fuel injector pipe to the cylinder head.
11. Remove the fuel injector while lifting up the fuel injector pipe. CAUTION: • Be careful not to spill fuel. • Catch the fuel from the pipes using a container or cloth.
|
Fuel injector
...
Inspection
1. Check that the fuel injector has no deformation, cracks or other damages.2. Measure the resistance between fuel injector terminals.Terminal No.Standard1 and 2Approx. 12.0 - (when 20°C (68&#x ...
