1. Check that the fuel injector has no deformation, cracks or other damages.

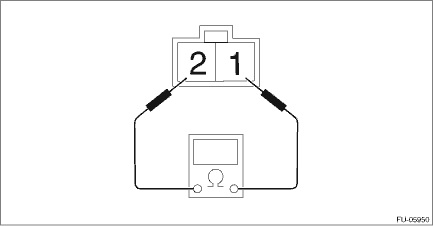

2. Measure the resistance between fuel injector terminals.

Terminal No.	Standard
1 and 2	Approx. 12.0 - (when 20°C (68°F))
