Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h6do) / Main relay / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

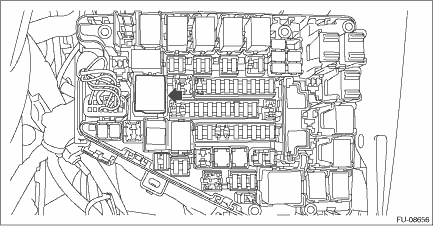

2. Remove the main relay from main fuse box.

1. Check that the main relay has no deformation, cracks or other damages.2. Measure the resistance between main relay terminals.Terminal No.Standard1 and 31 M- or more2 and 480.55 — 98.45 - (when 20 ...
