1. Remove the collector cover.

(1) Carefully pull up the rear of collector cover at two positions (A).

(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

2. Disconnect the ground terminal from battery sensor. NOTE

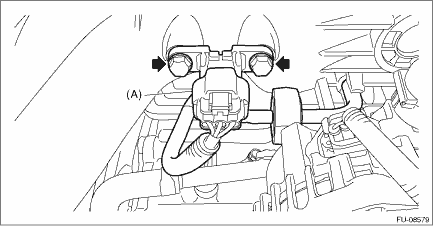

3. Disconnect the connector (A) from the manifold absolute pressure sensor, and remove the manifold absolute pressure sensor from intake manifold.

Manifold absolute pressure sensor

...

Inspection

1. Check that the manifold absolute pressure sensor has no deformation, cracks or other damages.2. Connect dry-cell battery positive terminal to terminal No. 3 and dry-cell battery ground terminal to ...
