Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / Air vent grille / Removal

1. CENTER GRILLE ASSEMBLY

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the panel - center grille assembly.

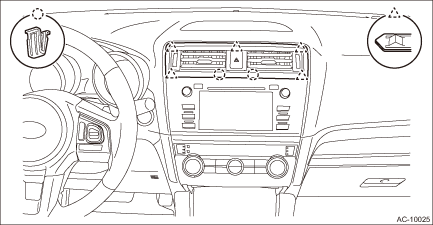

(1) Release the clips and claws.

(2) Detach the connectors, and remove the panel - center grille assembly.

(3) Remove the switch - hazard. Hazard Switch > REMOVAL

2. SIDE GRILLE ASSEMBLY

Release the claws and clips, then detach the grille assembly - ventilation.

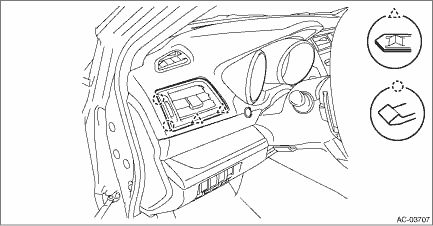

• LH side

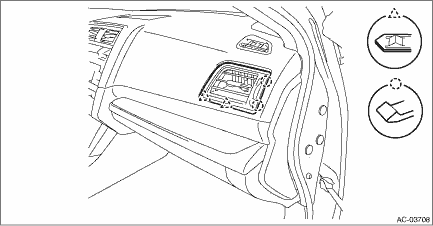

• RH side

3. REAR GRILLE ASSEMBLY

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the cover assembly - front and the console box assembly. Console Box > REMOVAL

3. Remove the screws, and remove the duct - console rear. Heater Duct > REMOVAL

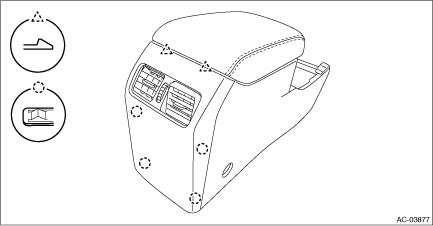

4. Release the claws and remove the end cover - console box.

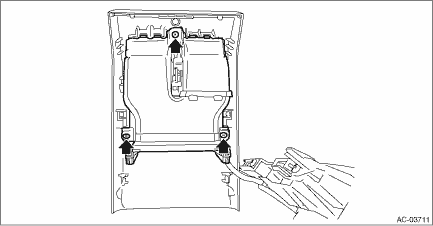

5. Remove the screws and remove the grille assembly - rear heater.

1. Check that the direction and amount of air can be adjusted smoothly. Replace the air vent grille if faulty.2. Check that the adjustment can be maintained in each position. Replace the air vent gril ...
