Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Luggage room light / Removal

NOTE:

Do not remove the luggage room light if removing the bulb only.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the luggage room light.

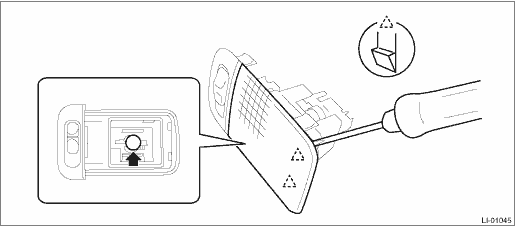

(1) Release the claws.

(2) Disconnect the connector and remove the light assembly - luggage room.

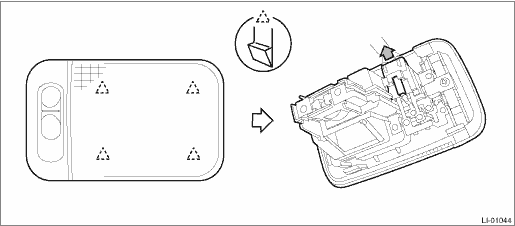

3. Release the claws, and detach the lens and bulb.

CAUTION:

• Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

• When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.

Inspection

1. Measure the resistance between connector terminals.Preparation tool:Circuit testerTerminal No.Inspection conditionsStandard1 — 2Switch OFF1 M- or moreSwitch ONLess than 1 -2 — 3Switch doorLess ...
