Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

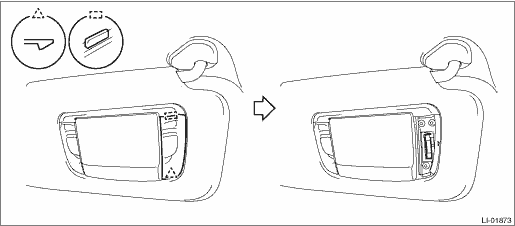

NOTE: • The vanity mirror light is integrated into the sun visor assembly. Replace the sun visor assembly if faulty. Sun Visor > REMOVAL • Do not remove the sun visor assembly if removing the bulb only. 1. Disconnect the ground terminal from battery sensor. NOTE 2. Remove the sun visor assembly. Sun Visor > REMOVAL 3. Release the claws and remove the lens and vanity mirror light bulb. CAUTION: • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb. • When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.
|
Installation
1. Install the bulb and lens.CAUTION:Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.2. Install the sun visor assembly.3. Connect the ground terminal to batte ...
