Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lubrication(h6do) / Oil cooler / Removal

CAUTION:

If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.

1. Drain engine coolant. Engine Coolant > REPLACEMENT

2. Drain the engine oil. Engine Oil > REPLACEMENT

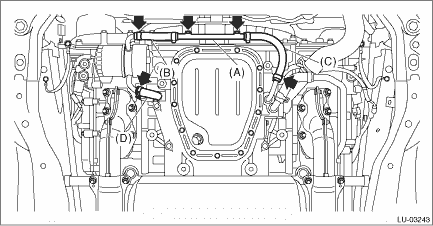

3. Remove the engine oil cooler water pipe (A), water hose (B) and water hose (C) as a unit, and disconnect the water hose (D) from the oil cooler.

4. Remove the oil filter. Engine Oil Filter > REMOVAL

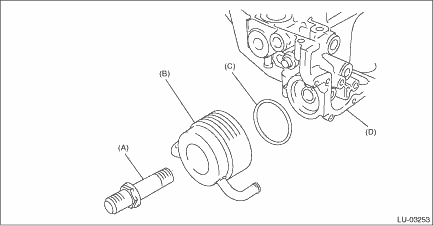

5. Remove the oil cooler connector and remove the engine oil cooler.

(A)	Oil cooler connector	(B)	Oil cooler	(C)	O-ring
(D)	Oil pan upper
