Subaru Legacy BN/BS (2015-2019) Owners Manual: Type B

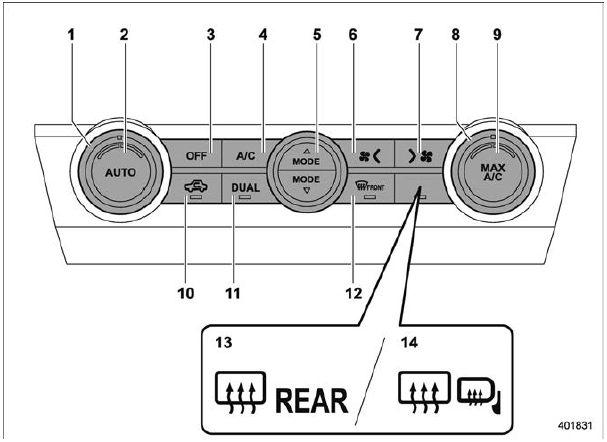

- Temperature control dial (Refer to "Temperature
control" .)
- "AUTO" button (Refer to "Automatic
climate control system (type B)" .)
- "OFF" button (Refer to "Automatic climate
control system (type B)" .)
- "A/C" button (Refer to "Air conditioner
control" .)
- Airflow mode selection button (Refer to
"Airflow mode selection" .)
- Fan speed control button (for decreasing
the fan speed) (Refer to "Fan speed
control" .)
- Fan speed control button (for increasing
the fan speed) (Refer to "Fan speed
control" .)
- Temperature control dial (Refer to "Temperature
control" .)
- "MAX A/C" button (Refer to "MAX A/C
mode" .)
- Air inlet selection button (Refer to "Air
inlet selection" .)
- "DUAL" button (Refer to "Automatic
climate control system (type B)"
and ""DUAL" mode (type B)" .)
- Defroster button (Refer to "Airflow mode
selection" and "Defrosting" .)
- Rear window defogger button (models
without outside mirror defogger) (Refer to
"Defogger and deicer" .)
- Rear window and outside mirror defogger
button (models with outside mirror defogger)
(Refer to "Defogger and deicer"
.)
|
Fan speed control dial (Refer to "Fan
speed control" .)
"A/C" button (Refer to "Air conditioner
control" .)
Airflow mode selection button (Refer to
"Airflow mode selection ...
NOTE
Operate the automatic climate control
system when the engine is running.
The blower fan rotates at a low
speed when the engine coolant temperature
is low.
For effi ...
