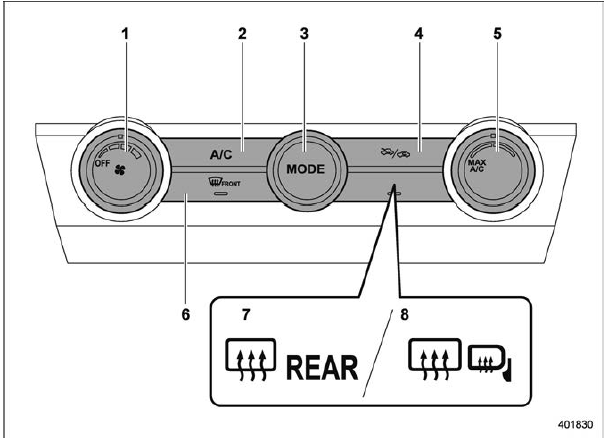

Climate control panel

Fan speed control dial (Refer to "Fan speed control" .)
"A/C" button (Refer to "Air conditioner control" .)
Airflow mode selection button (Refer to "Airflow mode selection" .)
Air inlet selection button (Refer to "Air inlet selection" .)
Temperature control dial (Refer to "Temperature control" and "MAX A/C mode" .)
Defroster button (Refer to "Airflow mode selection" and "Defrosting" .)
Rear window defogger button (models without outside mirror defogger) (Refer to "Defogger and deicer" .)
Rear window and outside mirror defogger button (models with outside mirror defogger) (Refer to "Defogger and deicer" .)

Type B

Temperature control dial (Refer to "Temperature control" .) "AUTO" button (Refer to "Automatic climate control system (type B)" .) "OFF" button (Refer to "Automatic climate ...
