Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

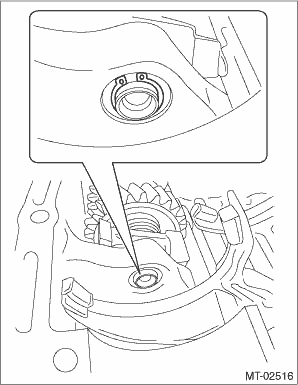

1. Remove the manual transmission assembly from the vehicle. Manual Transmission Assembly > REMOVAL 2. Remove the back-up light switch and the neutral position switch. Switches and Harness > REMOVAL 3. Remove the transfer case together with the extension case assembly. Transfer Case and Extension Case Assembly > REMOVAL 4. Remove the transmission case. Transmission Case > REMOVAL 5. Remove the drive pinion shaft assembly. Drive Pinion Shaft Assembly > REMOVAL 6. Remove the main shaft assembly. Main Shaft Assembly > REMOVAL 7. Remove the front differential assembly. Front Differential Assembly > REMOVAL 8. Shift into 4th. 9. Remove the snap ring.

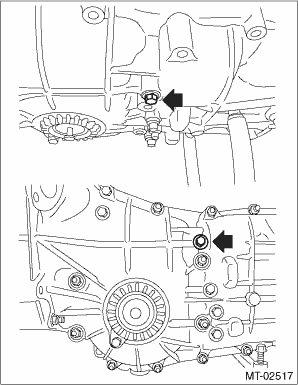

10. Remove the reverse idler gear shaft securing bolt.
11. Remove the reverse idler gear shaft by pushing it out. NOTE: Support the reverse idler gear assembly with hands to avoid collapsing.
12. Remove the reverse idler gear. 13. Remove the reverse idler gear bushing.
|
Adjustment
1. Select the appropriate reverse idler gear bushing from the table below, and adjust until the clearance between the reverse idler gear and reverse idler gear washer is within specification.Clearance ...
