Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Manual transmission and differential(6mt) / Transfer driven gear / Removal

1. Remove the manual transmission assembly from the vehicle. Manual Transmission Assembly > REMOVAL

2. Remove the back-up light switch and the neutral position switch. Switches and Harness > REMOVAL

3. Remove the transfer case together with the extension case assembly. Transfer Case and Extension Case Assembly > REMOVAL

4. Remove the extension case assembly.

5. Remove the transfer driven gear and center differential as a unit.

6. Remove the taper roller bearing outer race.

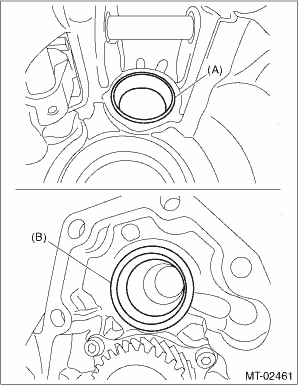

(A)	Taper roller bearing (transfer case side) outer race
(B)	Taper roller bearing (extension case side) outer race
