Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Manual transmission and differential(6mt) / Transmission mounting system / Removal

1. CROSSMEMBER AND CUSHION RUBBER

1. Disconnect the ground terminal from battery sensor. NOTE

2. Lift up the vehicle.

3. Remove the front under cover. Front Under Cover > REMOVAL

4. Remove the center exhaust pipe (rear). Center Exhaust Pipe > REMOVAL

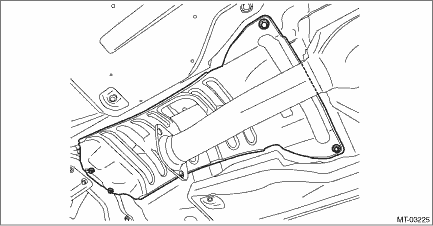

5. Remove the center exhaust cover.

6. Set the transmission jack.

CAUTION:

Always support the transmission case with a transmission jack.

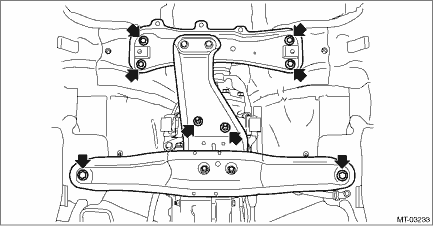

7. Remove the front crossmember and the rear crossmember.

8. Remove the transmission cushion rubber.
