Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

1. CAM SPROCKET RH

NOTE:

When replacing a single part, perform the work with the engine assembly installed to body.

Intake cam sprocket RH

1. Remove the chain cover. Chain Cover > REMOVAL

2. Remove the timing chain RH. Timing Chain Assembly > REMOVAL

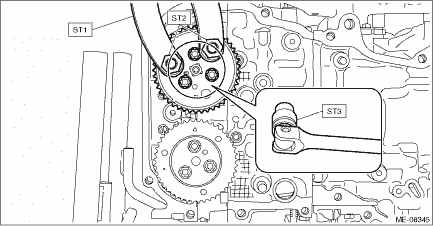

3. Hold the intake cam sprocket RH using the ST1 and ST2, and remove the bolts using the ST3.

CAUTION:

Perform the operation carefully since the ST comes off easily.

ST1 18355AA000PULLEY WRENCH
ST2 18334AA020PULLEY WRENCH PIN SET
ST3 18270KA010SOCKET

4. Remove the intake cam sprocket RH.

Exhaust cam sprocket RH

1. Remove the chain cover. Chain Cover > REMOVAL

2. Remove the timing chain RH. Timing Chain Assembly > REMOVAL

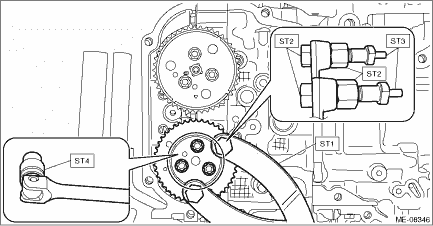

3. Hold the exhaust cam sprocket RH using the ST1, ST2 and ST3, and remove the bolts using the ST4.

ST1 18355AA000PULLEY WRENCH
ST2 18334AA040PULLEY WRENCH PIN SET
ST3 18334AA020PULLEY WRENCH PIN SET
ST4 18270KA010SOCKET

4. Remove the exhaust cam sprocket RH.

2. CAM SPROCKET LH

NOTE:

When replacing a single part, perform the work with the engine assembly installed to body.

Intake cam sprocket LH

1. Remove the chain cover. Chain Cover > REMOVAL

2. Remove the timing chain LH. Timing Chain Assembly > REMOVAL

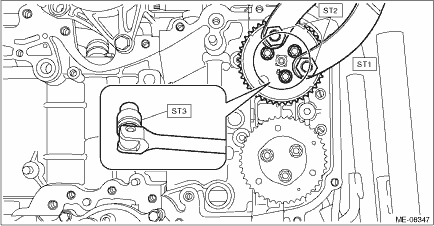

3. Hold the intake cam sprocket LH using the ST1 and ST2, and remove the bolts using the ST3.

CAUTION:

Perform the operation carefully since the ST comes off easily.

ST1 18355AA000PULLEY WRENCH
ST2 18334AA020PULLEY WRENCH PIN SET
ST3 18270KA010SOCKET

4. Remove the intake cam sprocket LH.

Exhaust cam sprocket LH

1. Remove the chain cover. Chain Cover > REMOVAL

2. Remove the timing chain LH. Timing Chain Assembly > REMOVAL

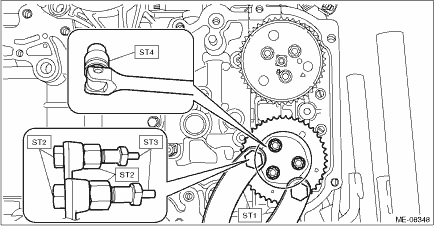

3. Hold the exhaust cam sprocket LH using the ST1, ST2 and ST3, and remove the bolts using the ST4.

ST1 18355AA000PULLEY WRENCH
ST2 18334AA040PULLEY WRENCH PIN SET
ST3 18334AA020PULLEY WRENCH PIN SET
ST4 18270KA010SOCKET

4. Remove the exhaust cam sprocket LH.

Cam sprocket
...

Inspection
Check the cam sprocket teeth for abnormal wear and scratches. ...
