Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Rear suspension / Rear stabilizer / Removal

1. Lift up the vehicle, and then remove the rear wheels.

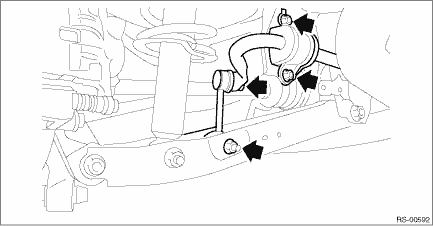

2. Remove the rear stabilizer.

(1) Remove the nut and disconnect the right and left stabilizer link assemblies.

(2) Detach the right and left clamps - stabilizer bushing and remove the rear stabilizer.
