Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Trunk lid latch and actuator assembly / Removal

1. Open the trunk lid COMPL.

2. Disconnect the ground terminal from battery sensor. NOTE

3. Remove the trim panel - trunk lid. Trunk Room Trim > REMOVAL

4. Remove the lock assembly - trunk lid.

(1) Disconnect the connector.

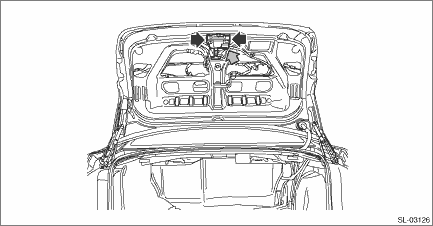

(2) Remove the bolts, then remove the lock assembly - trunk lid.

Trunk lid latch and actuator assembly

...

Inspection

1. LATCHCheck if the latch operates normally.If latch deformation, abnormal wear, or unsmooth lock operation is observed, replace the lock assembly - trunk lid.2. ACTUATOR1. Check door lock operationC ...
