1. Disconnect the ground terminal from battery sensor. NOTE

2. Lift up the vehicle, and then remove the front wheels.

3. Remove the front ABS wheel speed sensor.

CAUTION:

• Be careful not to damage the sensor.

• Do not apply excessive force to the sensor harness.

• Leave the sensor harness clamp on the vehicle side.

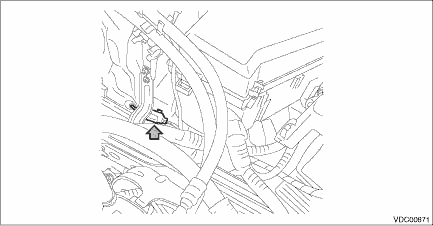

(1) Disconnect the connector of the front ABS wheel speed sensor in the engine compartment.

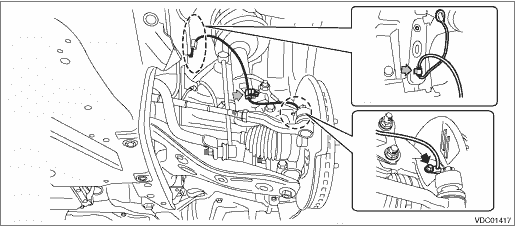

(2) Remove each harness clip and grommet.

(3) Remove the front ABS wheel speed sensor from the housing assembly - front axle.

Inspection

1. CHECK WITH SUBARU SELECT MONITOR1. Connect the Subaru Select Monitor to data link connector.NOTE:For detailed operation procedures, refer to “Application help”.(1) On «Start» display, ...
