Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Vehicle dynamics control (vdc) / Hill hold switch / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the cover assembly - front. Console Box > REMOVAL

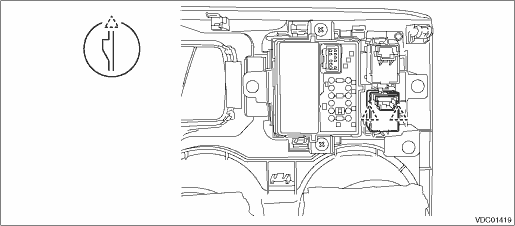

3. Release the claws and remove the hill hold switch.
