Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Vehicle dynamics control (vdc) / Vdc off switch / Removal

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE

2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL

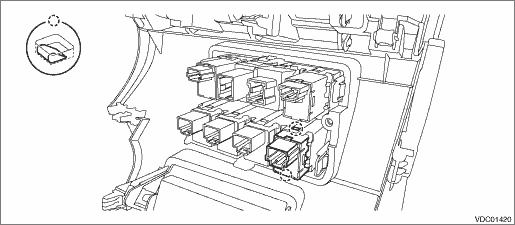

3. Release the claws and remove the VDC OFF switch.
