Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Intake (induction)(h6do) / Air cleaner case / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the air intake duct. Air Intake Duct > REMOVAL

3. Remove the air cleaner element. Air Cleaner Element > REMOVAL

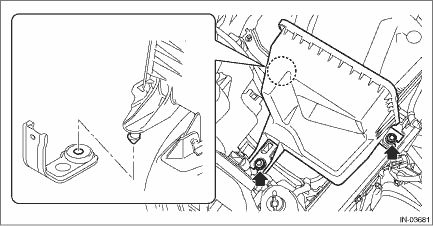

4. Remove the bolts securing the air cleaner case (front) to the vehicle body.

5. Remove the air cleaner case (front).

NOTE:

The protrusion of the air cleaner case (front) is inserted in the cushion of the air cleaner case bracket.

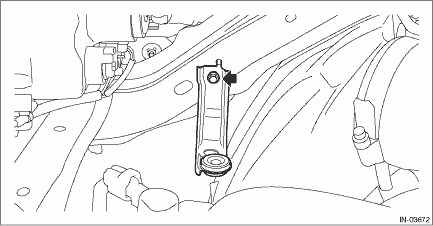

6. Remove the air cleaner case bracket from the vehicle.

Inspection

1. Check that the air cleaner case has no deformation, cracks or other damages.2. Check that the air intake boot has no cracks, damage or loose part. ...
