Subaru Legacy BN/BS (2015-2019) Service Manual: Removal
1. Disconnect the ground terminal from battery sensor. NOTE 2. Remove the instrument panel lower cover. Instrument Panel Lower Cover > REMOVAL 3. Remove the starter relay from relay block.
|

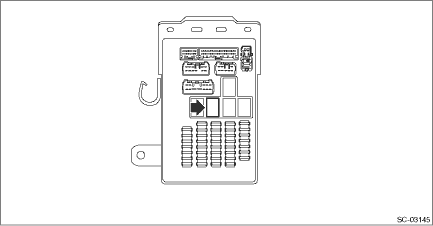

Starter relay
...
Inspection
1. Check that the starter relay does not have deformation, cracks and any other damage.2. Measure the resistance between starter relay terminals.Terminal No.Standard1 and 21 M- or more3 and 4128.07 †...
