Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Starting charging systems(h4do) / Starter relay / Inspection

1. Check that the starter relay does not have deformation, cracks and any other damage.

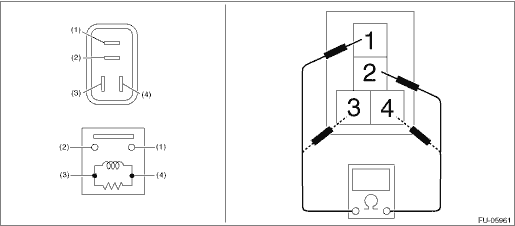

2. Measure the resistance between starter relay terminals.

Terminal No.	Standard
1 and 2	1 M- or more
3 and 4	128.07 — 156.53 - (when 20°C (68°F))

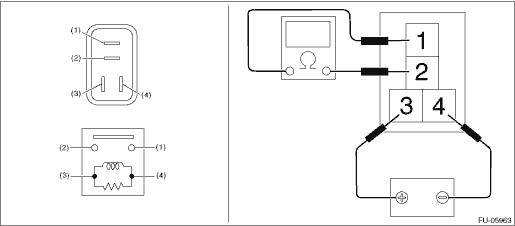

3. Connect battery positive terminal to terminal No. 3 and battery ground terminal to terminal No. 4, and measure the resistance between the starter relay terminals.

Terminal No.	Standard
1 and 2	Less than 1 -

Removal

1. Disconnect the ground terminal from battery sensor. NOTE2. Remove the instrument panel lower cover. Instrument Panel Lower Cover > REMOVAL3. Remove the starter relay from relay block. ...

Installation

1. Install the starter relay to the relay block.2. Install the instrument panel lower cover. Instrument Panel Lower Cover > INSTALLATION3. Connect the ground terminal to battery sensor. NOTE ...
