Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Starting charging systems(h6do) / Generator / Removal

1. Remove the collector cover.

(1) Carefully pull up the rear of collector cover at two positions (A).

(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

2. Disconnect the ground terminal from battery sensor. NOTE

3. Remove the V-belts. V-belt > REMOVAL

4. Disconnect the connector (A) from the generator, and remove the terminal (B).

5. Remove the harness cover (C) from the collector cover bracket.

6. Remove the collector cover bracket.

7. Remove the tensioner assembly.

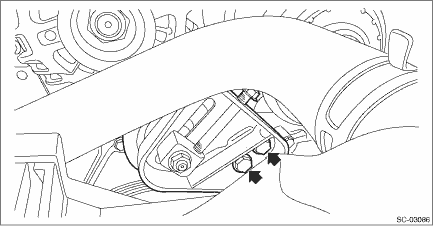

8. Remove the generator from the A/C compressor bracket.

9. Remove the generator bracket from the engine.
