Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Emission control (aux. Emission control devices)(h6do) / Purge control solenoid valve / Removal

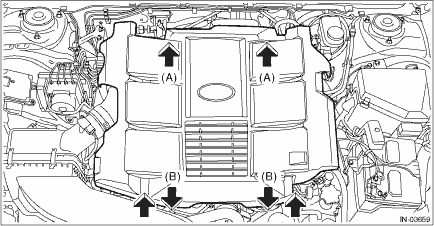

1. Remove the collector cover.

(1) Carefully pull up the rear of collector cover at two positions (A).

(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

2. Disconnect the ground terminal from battery sensor. NOTE

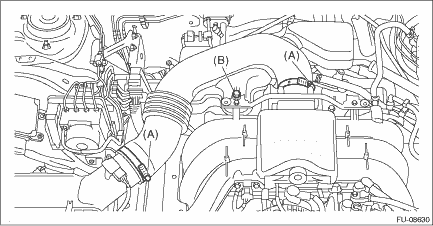

3. Loosen the clamp (A) securing the air intake boot.

4. Remove the bolt (B) securing the air intake boot to the collector cover bracket.

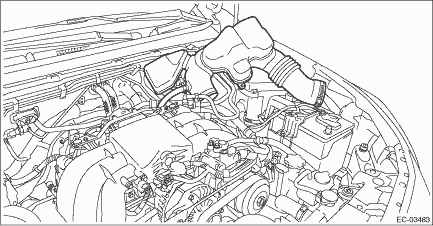

5. Remove the air intake boot from the throttle body and the air cleaner case (rear), and move it to the left side wheel apron.

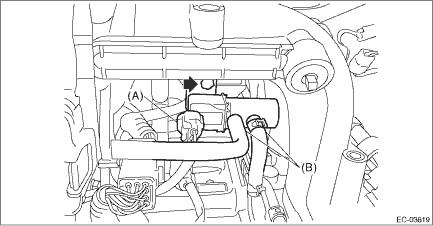

6. Disconnect the connector (A) and vacuum hose (B) from the purge control solenoid valve, and remove the purge control solenoid valve.
