Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiper and washer systems / Rear washer / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the roof spoiler. Roof Spoiler > REMOVAL

3. Remove the nozzle - rear washer.

CAUTION:

Before removing, apply protective tape to the body panel and used tools not to damage the panel - rear gate.

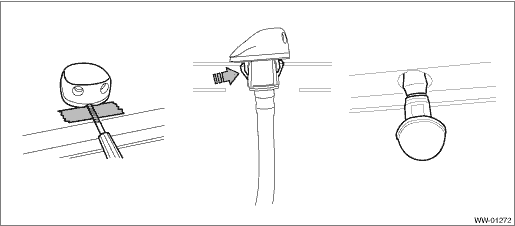

(1) Push the claw using a precision screwdriver, etc.

(2) When the nozzle - rear washer lifts up, pull out the nozzle - rear washer using a clip remover, etc.

(3) Disconnect the hose assembly - rear washer, and remove the nozzle - rear washer.
