Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

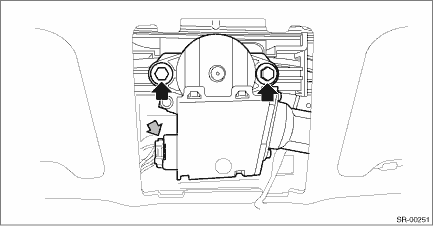

1. Disconnect the ground terminal from battery sensor. NOTE 2. Remove the overhead console. (Models without EyeSight) Spot Map Light > REMOVAL 3. Remove the stereo camera cover assembly. (Models with EyeSight) Stereo Camera > REMOVAL 4. Remove the motor assembly - sunroof. (1) Disconnect the harness connector. (2) Remove the bolt, and then remove the motor assembly - sunroof. CAUTION: When removing the motor assembly - sunroof, do not allow the cable assembly to move.
|
Sunroof motor
...
Inspection
Check the auto-reverse mechanism.CAUTION:Do not place objects in the way to check the auto-reverse mechanism.1. Open the lid assembly - sunroof.2. Push the lid assembly - sunroof in the opening direct ...
