Subaru Legacy BN/BS (2015-2019) Service Manual: Seat heater system wiring diagram

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiring system / Seat heater system wiring diagram

1. FRONT SEAT

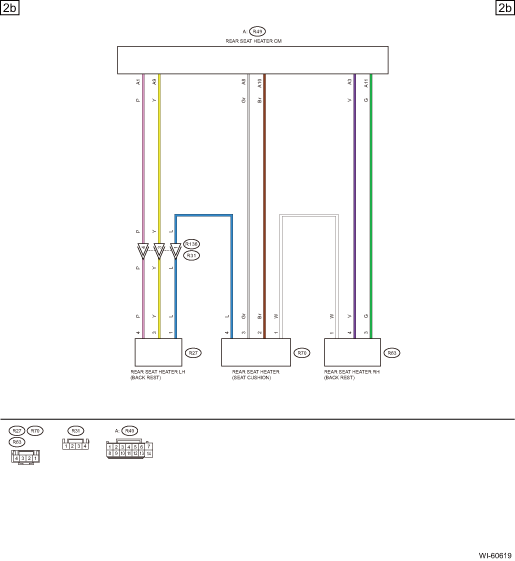

2. REAR SEAT

Seat belt warning system wiring diagram

...

Security system wiring diagram

...
