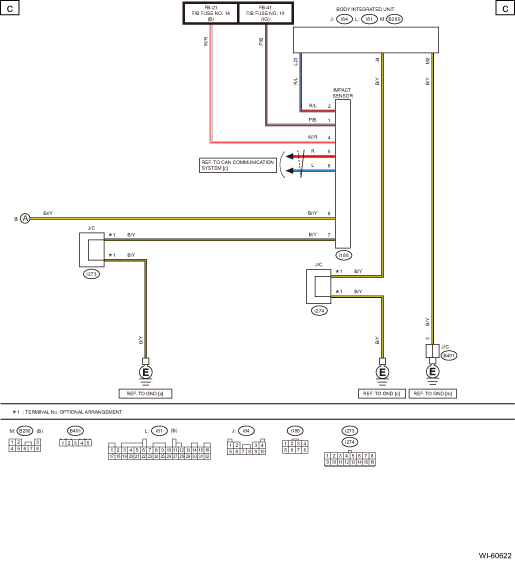

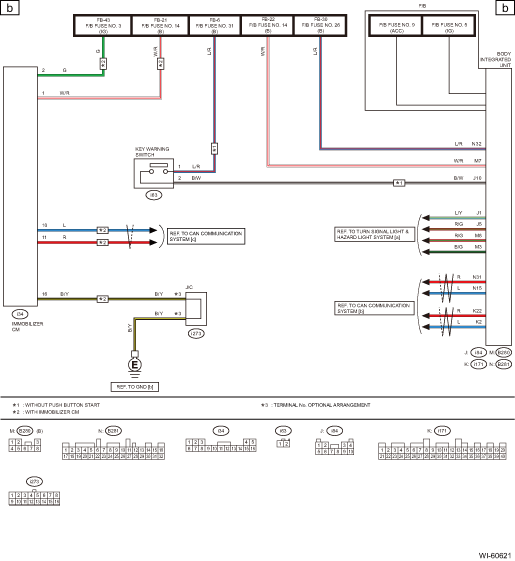

Subaru Legacy BN/BS (2015-2019) Service Manual: Security system wiring diagram

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiring system / Security system wiring diagram
